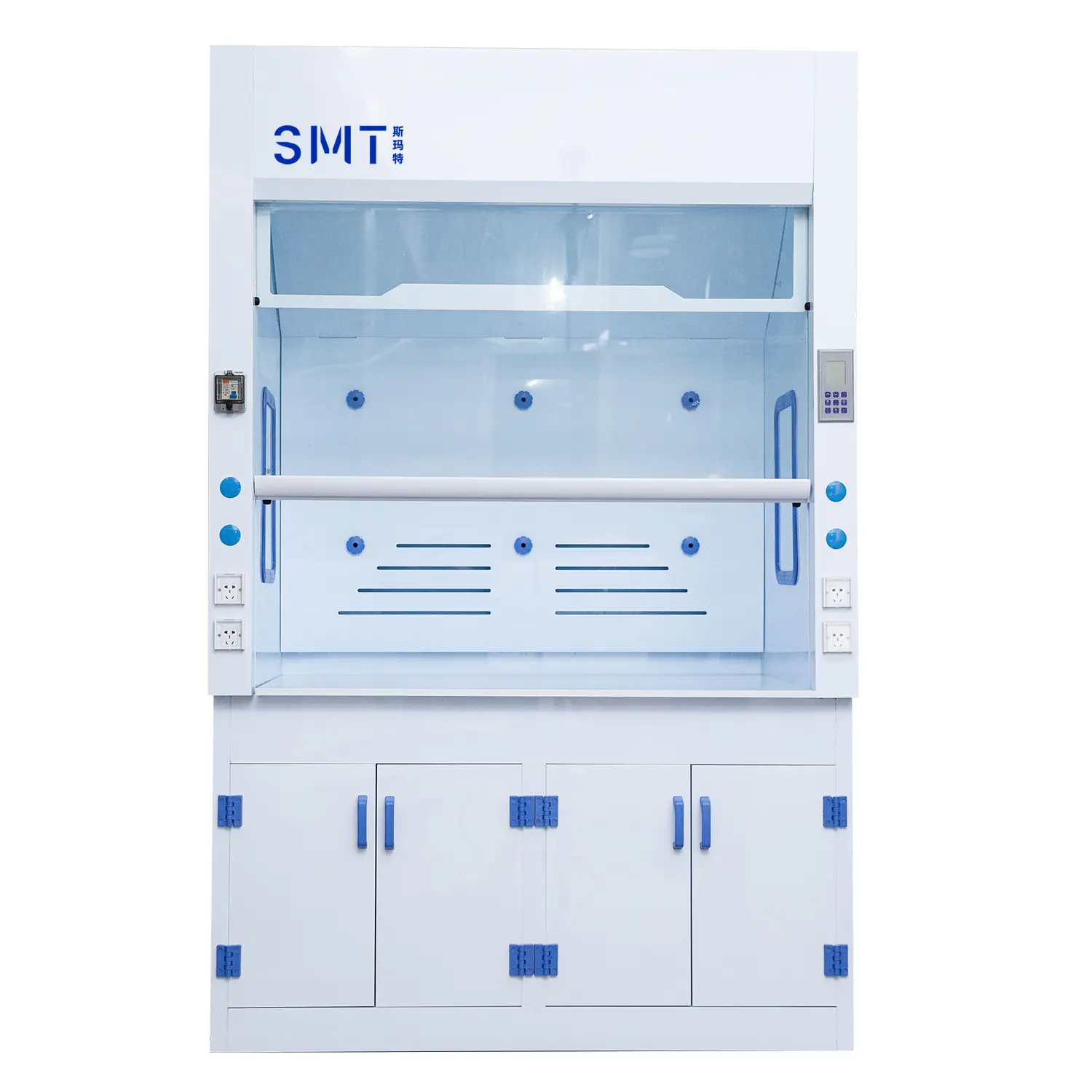

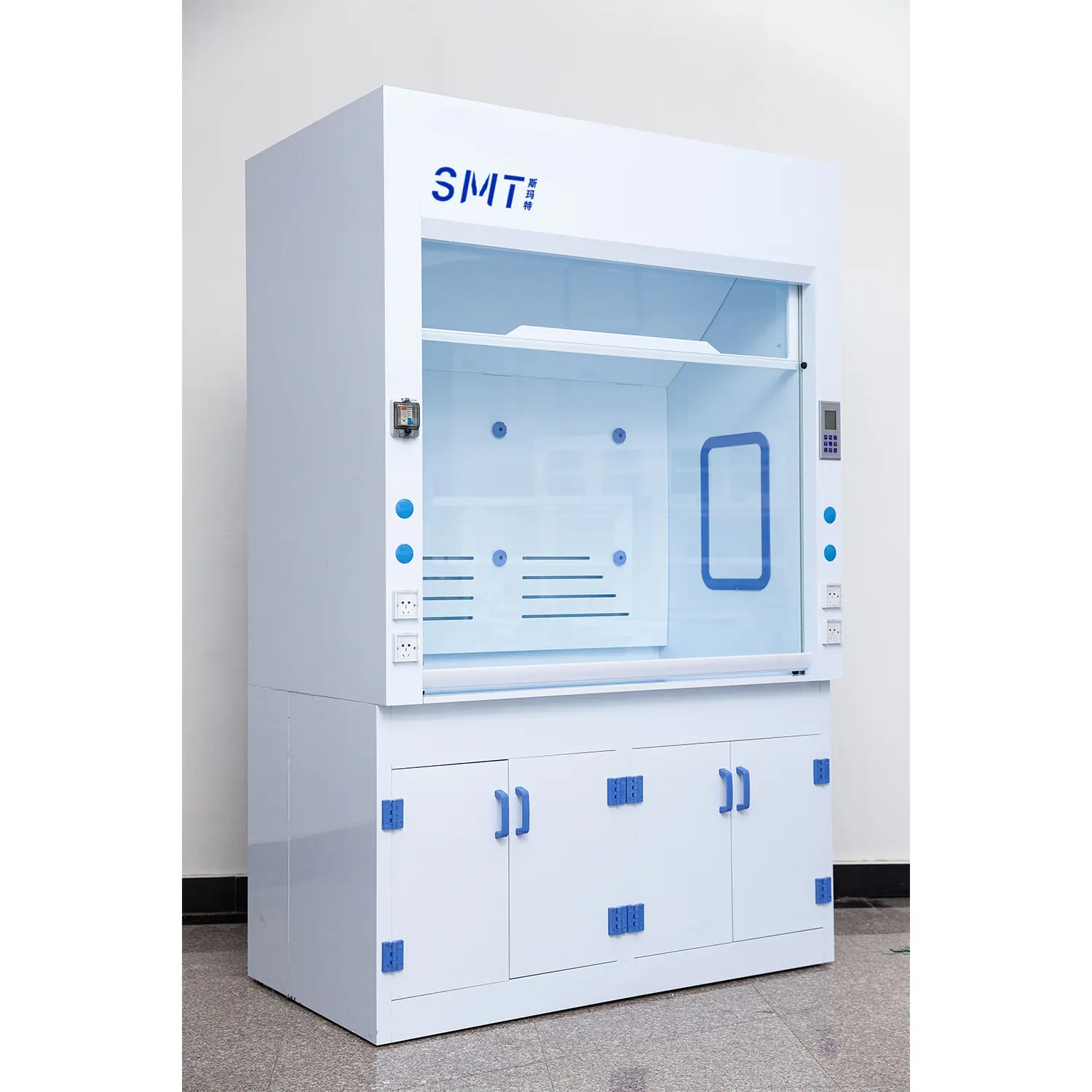

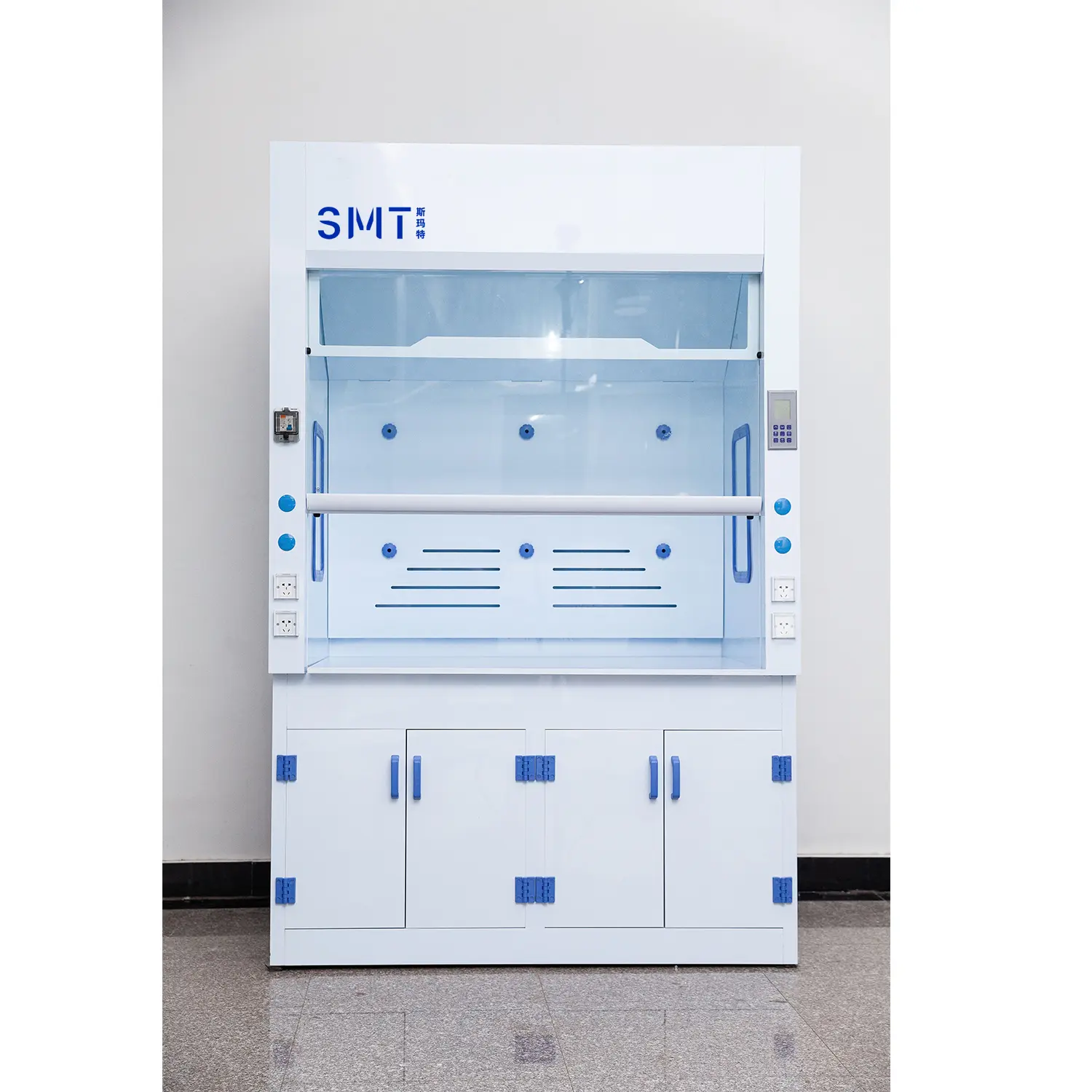

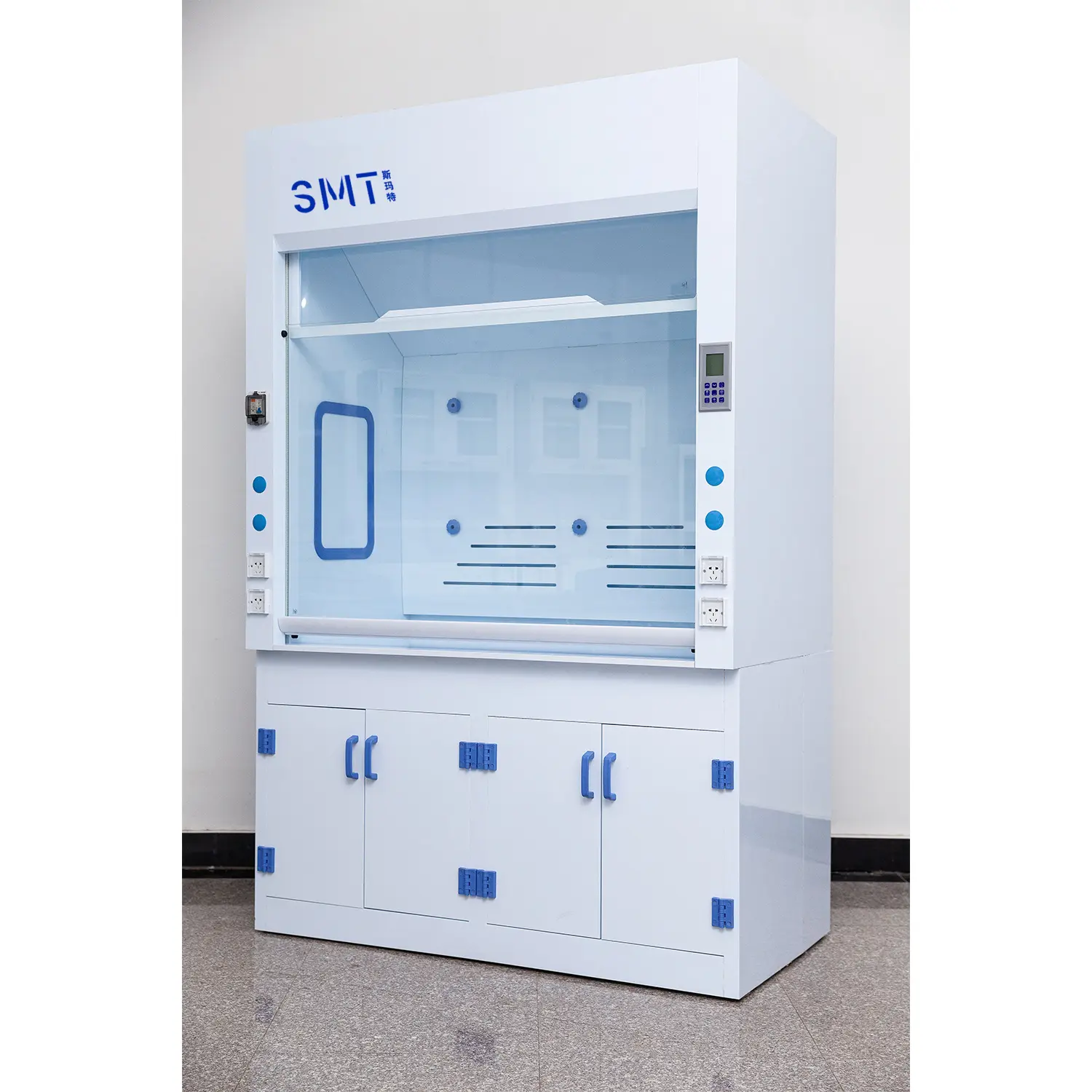

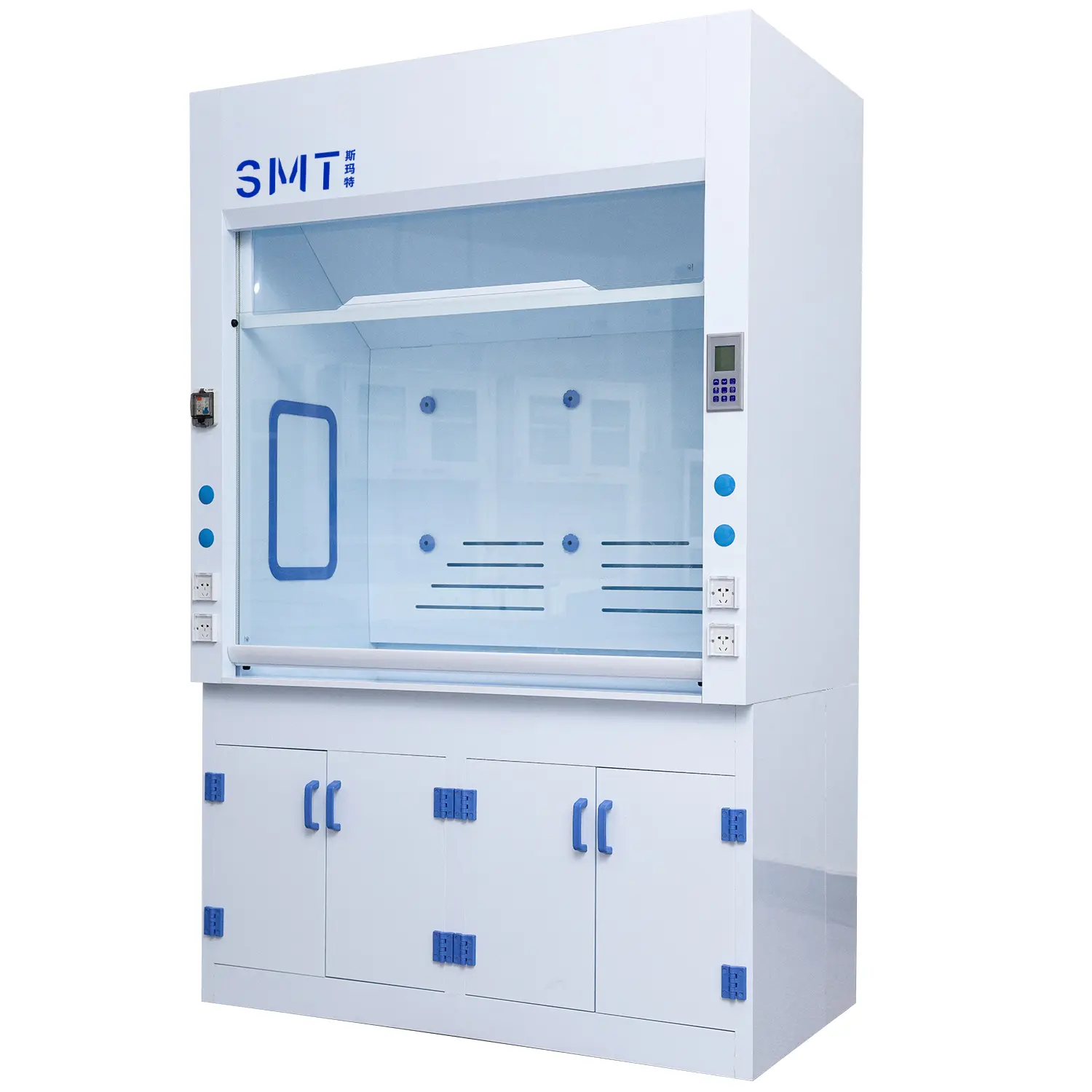

PP Fume Hood

Choosing a PP material fume hood makes anti-corrosion very simple. It is made by welding 8mm thick PP polypropylene plates. The window glass is made of 5mm thick tempered glass, which has high strength and good bending resistance. Sliding window door, vertical window door; The circuit control panel adopts a liquid crystal display panel. The exhaust outlet adopts a PP material gas collection hood, with a circular hole of 250mm in diameter at the air outlet.

Anti-corrosion PP fume hood
The cabinet disassembly and assembly structure adopts a “mouth type, U type, T type” folded edge welding reinforced structure, with a stable physical structure. It can bear a maximum load of 400KG, which is much higher than that of other similar brand products, and has excellent resistance to strong acids and alkalis.
The diameter of the air outlet is a 250mm round hole.
Sleeve connection reduces gas turbulence.
The circuit control panel adopts a liquid crystal display panel.

Material description

The PP material fume hood has the characteristics of resistance to strong acids, strong alkalis and corrosion, overcoming the shortcomings of traditional fume hoods such as rusting, yellowing and cracking in strong acid and strong alkali environments. It is applicable to various high-cleanliness laboratories such as chemical laboratories, semiconductor laboratories, trace metal laboratories, biological laboratories, etc.

PRODUCT PARAMETERS

1. Upper cabinet
The main frame is made of 8MM thick high-quality pure PP(polypropylene) plates and welded with welding rods of the same color and material. The top adopts a top cover type exhaust design, and the deflector plate is made of the same PP material. The installation dimensions are scientifically reasonable, with no airflow dead corners, achieving the maximum exhaust gas capture performance.

2. Operating countertop
The countertop of the fume hood is designed to be welded as a whole with the upper cabinet. The human position operation surface is equipped with water-blocking and anti-overflow treatment. The countertop can also be equipped with other materials according to customer requirements. The upper water trough is configured according to user requirements.

3. Lower cabinet body
The storage cabinet body is made of 8MM acid and alkali resistant PP material. Through the bending process, the columns form a “square tube structure” and a “T” shape structure, which can achieve excellent load-bearing capacity. The door panel is made of 15MM thick high-quality PP polypropylene plate.

4. Move the window
The regulating door is made of 5MM thick tempered glass, which has excellent acid and alkali resistance. The frame of the regulating door adopts a grey PPC type groove embedded design, which is sturdy and durable. The regulating door adopts synchronous belt transmission, with a PP material weight box for balanced counterweight. It features a stepless design and feels light and comfortable.

5 .Circuit equipment
It adopts an integrated controller panel with liquid crystal display function to visually control various parameters, including fan switch, lighting switch and main power switch. Each fume hood is equipped with two 220V 10A power sockets with splash covers.

6. Other accessories
All handle hinges are made of acid and alkali resistant PP material (color options: deep blue, magnetic white, light gray, dark gray). PP gas collection hood, standard 250MM air outlet (air outlet size can be customized), PP deflector clamp (color options: deep blue, light gray, black), PP silent pulley design.
